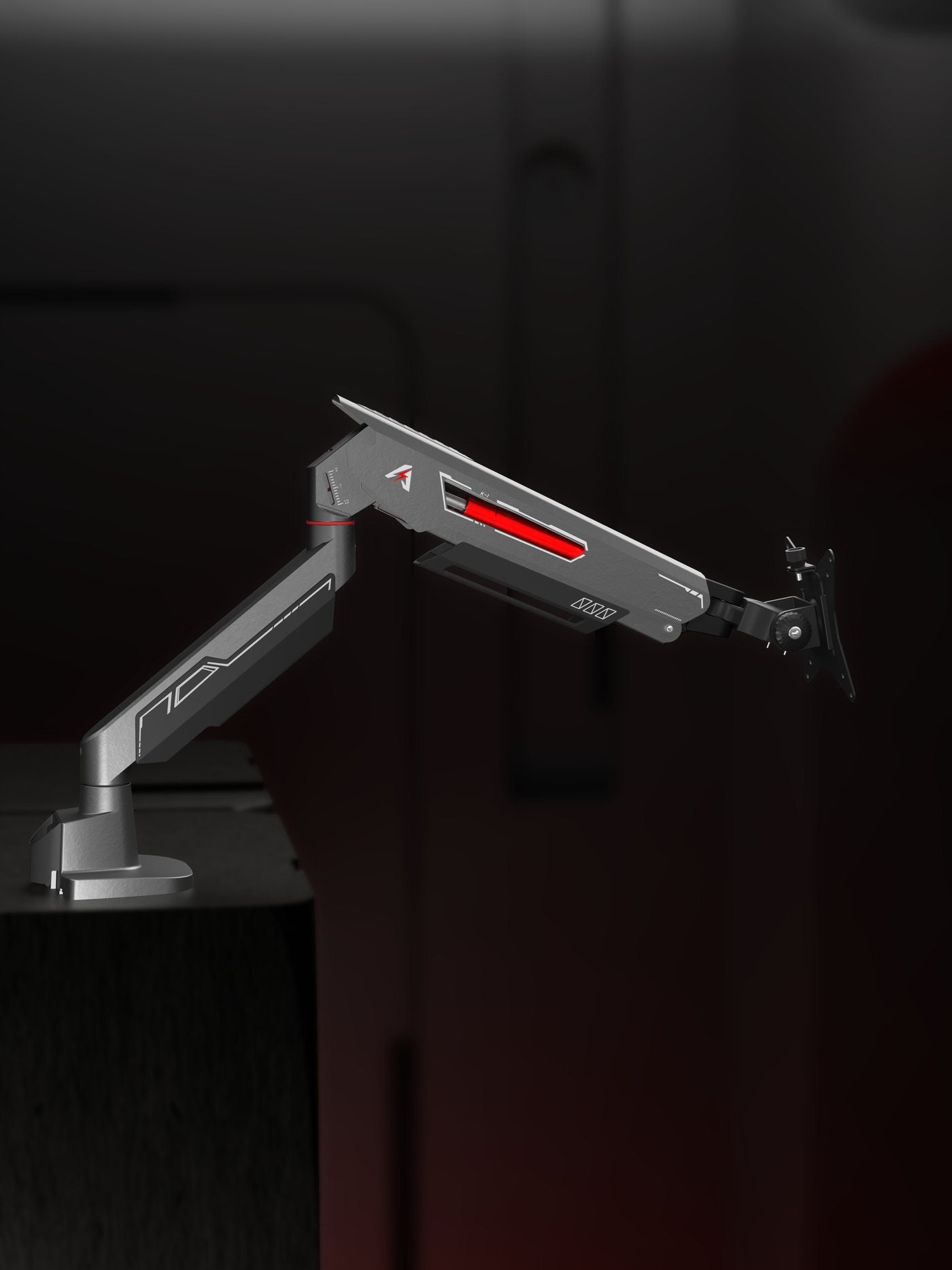

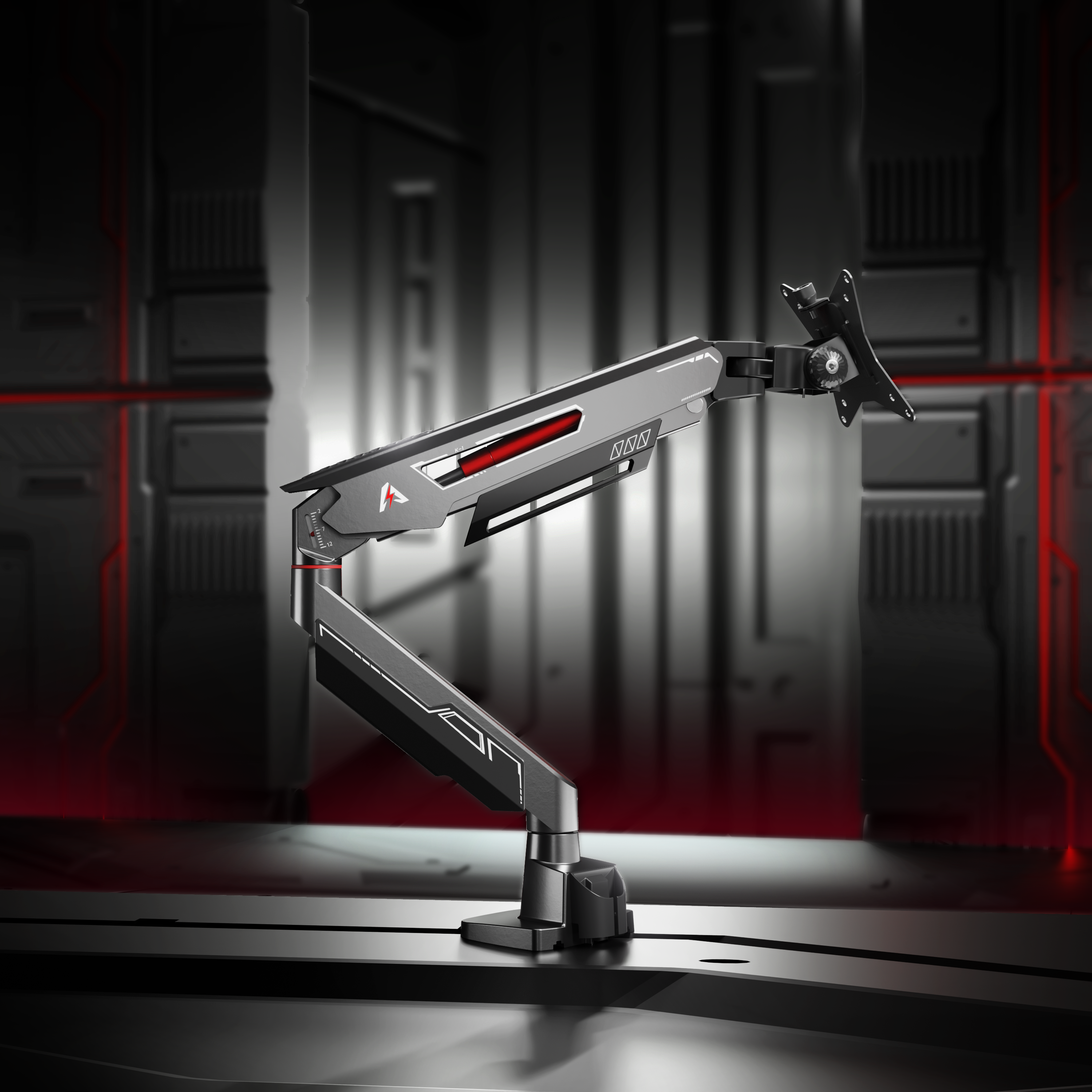

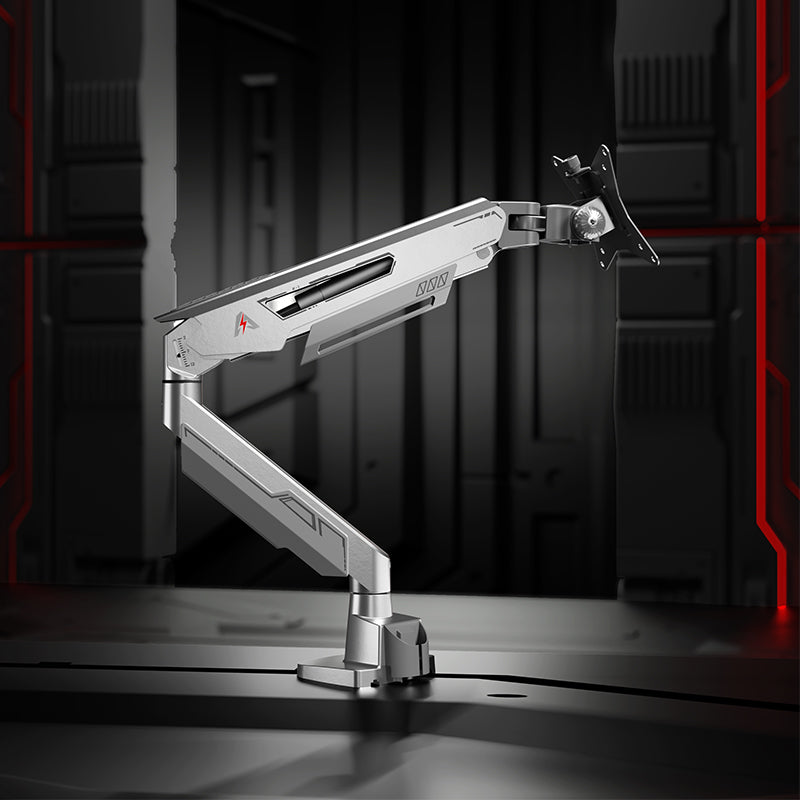

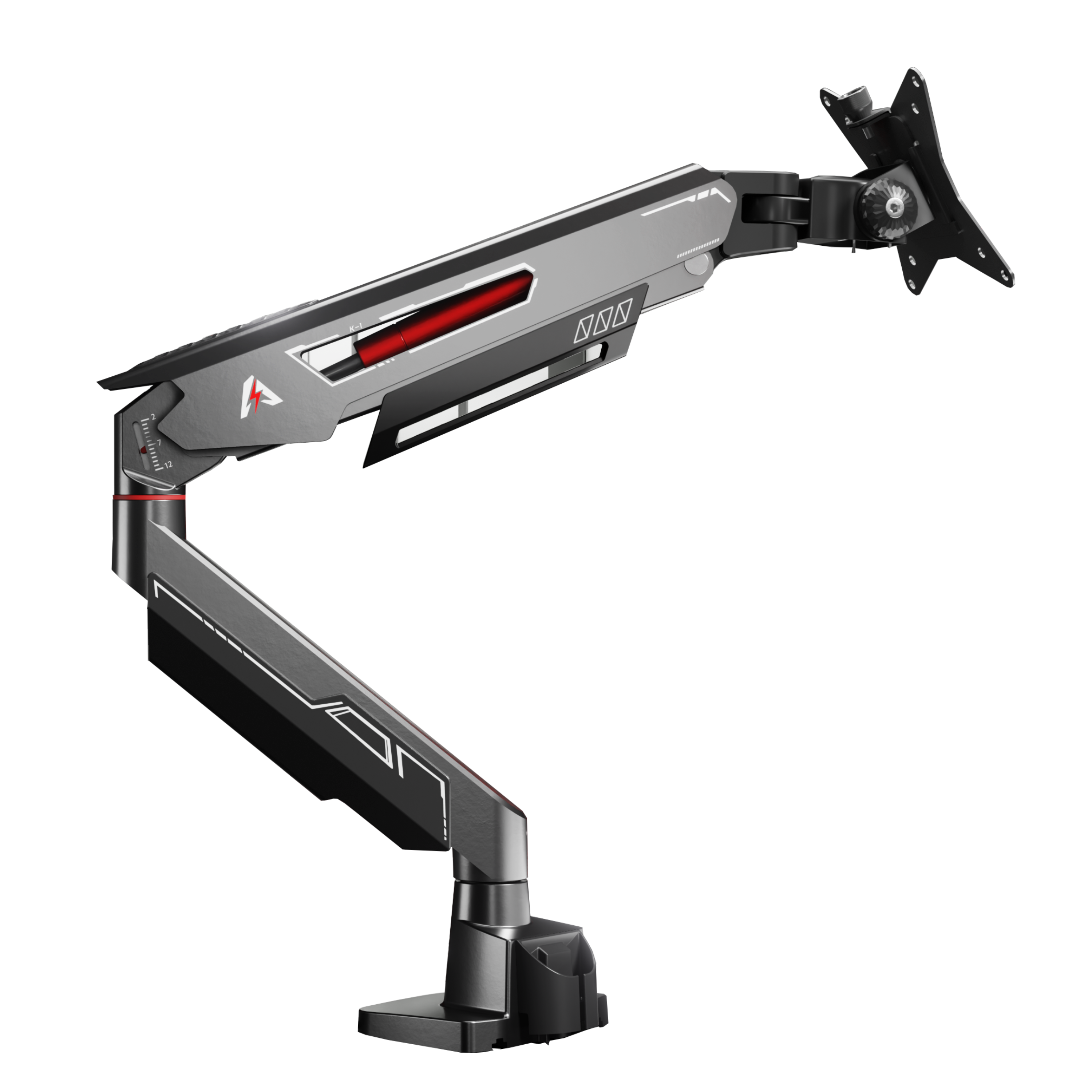

L1 Gas-Spring Monitor Arm
The AGKey L1 Gas-Spring Monitor Arm lifts your screen off the desktop, creating a cleaner, more ergonomic, and more flexible workspace. Its heavy-duty construction provides smooth screen positioning while freeing up valuable desk space.

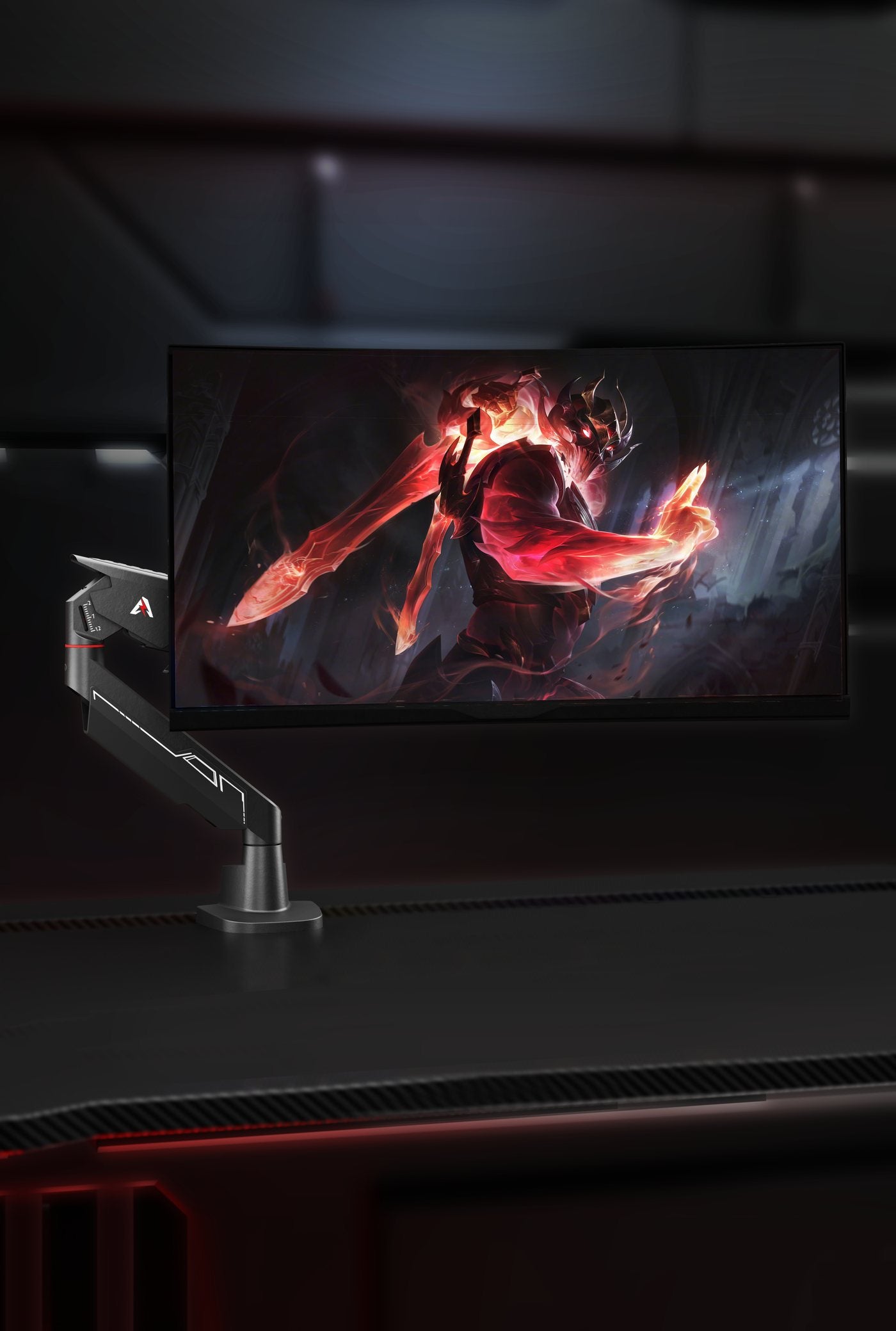

Designed for 13–36 inch monitors weighing between 2 and 12 kg, the L1 features five-axis movement, adjustable gas-spring tension, and a visible weight scale for easier setup. It is suitable for home offices, gaming setups, creative workstations, and ultrawide or curved monitors with compatible VESA mounting holes.
Key Specifications
- Brand: AGKey
- Model: AGKey L1
- Colour: Black / Silver
- Screen size: 13–36 inches
- Load capacity: 2–12 kg
- VESA pattern: 75 × 75 mm / 100 × 100 mm
- Tilt range: −20° to +60°
- Swivel range: 180°
- Screen rotation: 360° (landscape / portrait)
- Arm extension: approximately 55 cm
- Mounting options: desk clamp / grommet mount
- Recommended use: home office, gaming desk, creative workstation, ultrawide monitor setup, and single-monitor workstation
Key Features
- Five-axis full-motion adjustment

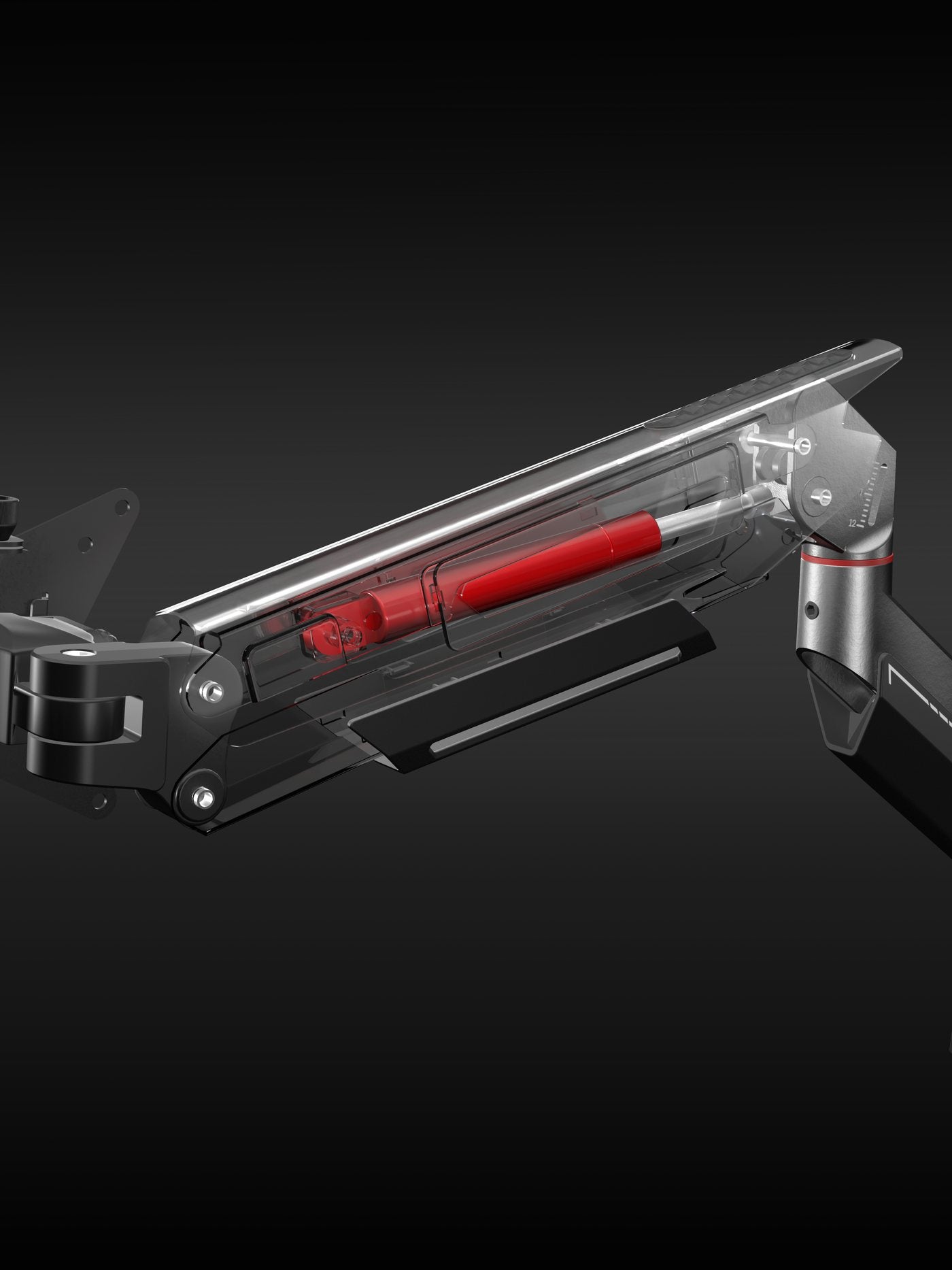

- High-performance gas-spring mechanism

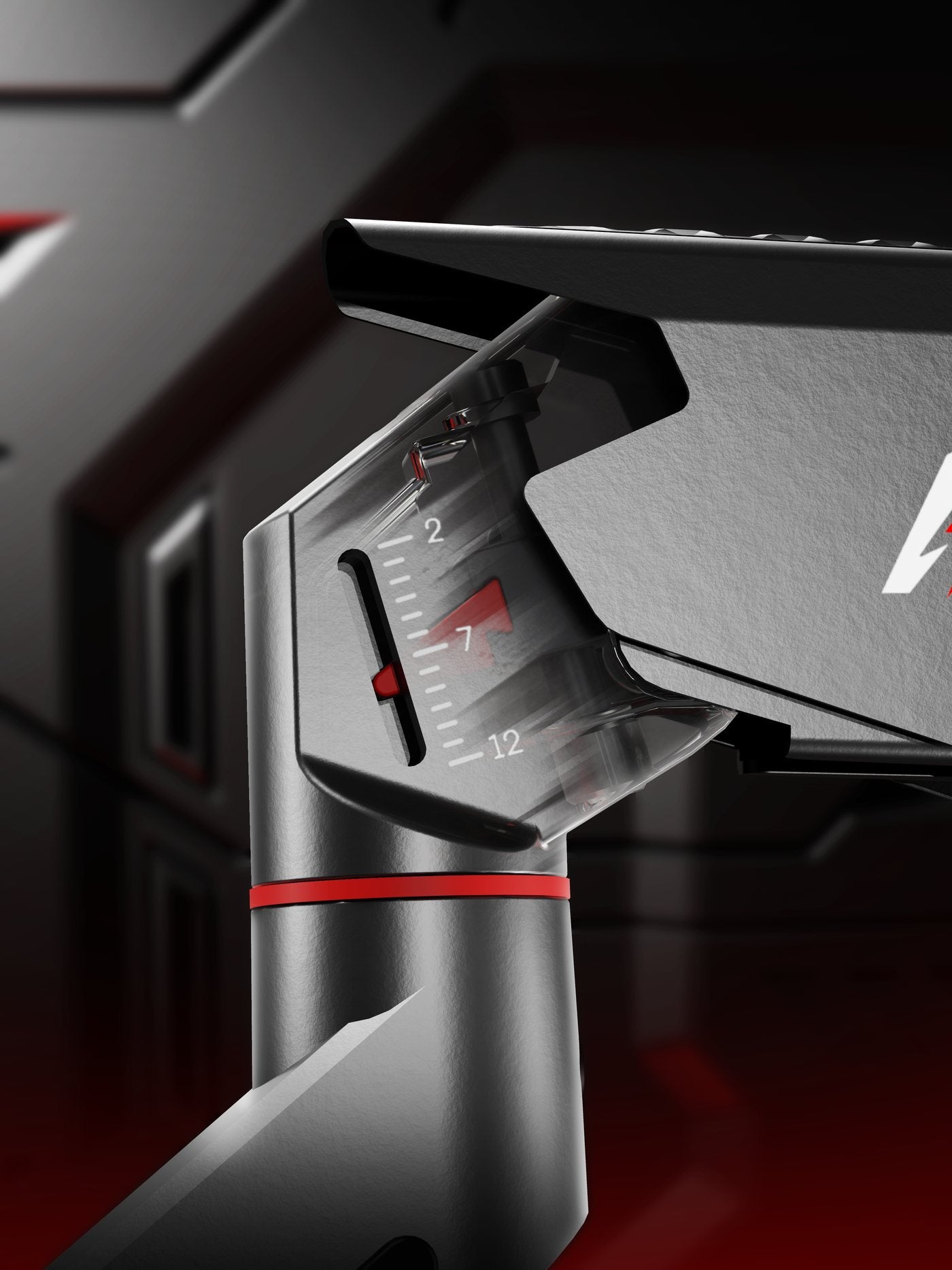

- Visible 2–12 kg tension gauge
- Adjustable joint damping
- Quick-release VESA mounting plate

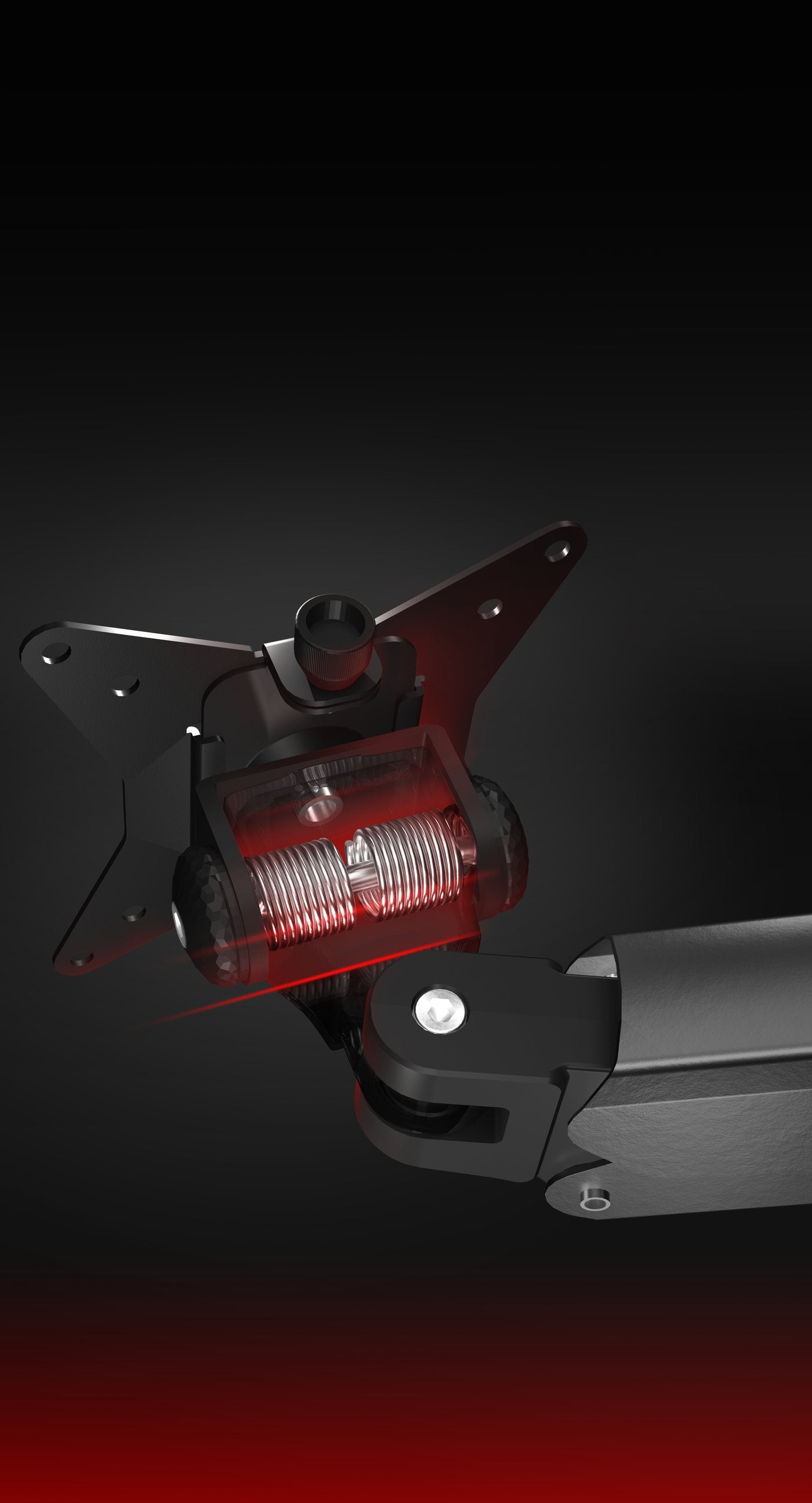

- Reinforced torsion joint designed to reduce screen sag
- Integrated hidden cable routing
- Aluminium alloy base
- Desk clamp and grommet mounting options
- Tested beyond 50,000 fatigue cycles under manufacturer laboratory conditions
Care & Notes
- Please confirm that your monitor weighs between 2 and 12 kg and has 75 × 75 mm or 100 × 100 mm VESA mounting holes before purchase.
- Install the monitor before adjusting the arm tension.
- Keep one hand on the monitor while adjusting the tension until the screen remains securely in position.
- The arm is supplied pre-tensioned and may move upward before the monitor is installed.

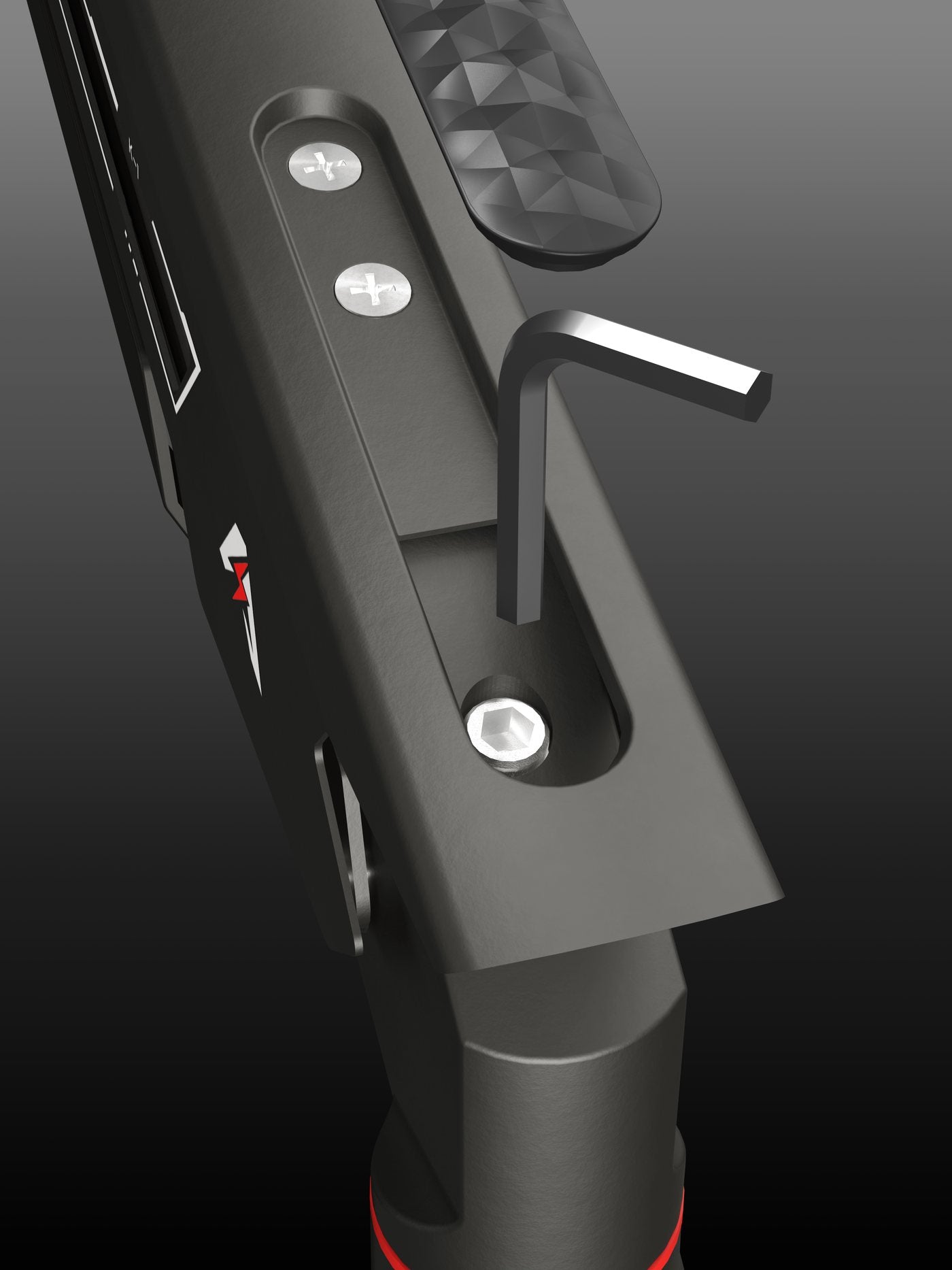

- Use the included adjustment tool to fine-tune the gas-spring tension and joint resistance.
- Do not disassemble the gas-spring arm assembly.
- Do not over-tighten the adjustment screws, as excessive force may damage the mechanism.
- Check all mounting and fixing screws periodically, especially if the monitor position is adjusted frequently.
- Actual product colour and appearance may vary slightly from product images.
L1 Gas-Spring Monitor Arm
Mecha Build. Razor-Sharp Design.
C-Clamp Quick Install — Three Easy Steps
The upgraded internal-rotation base tightens from above the desk. No crawling underneath, no experience needed.

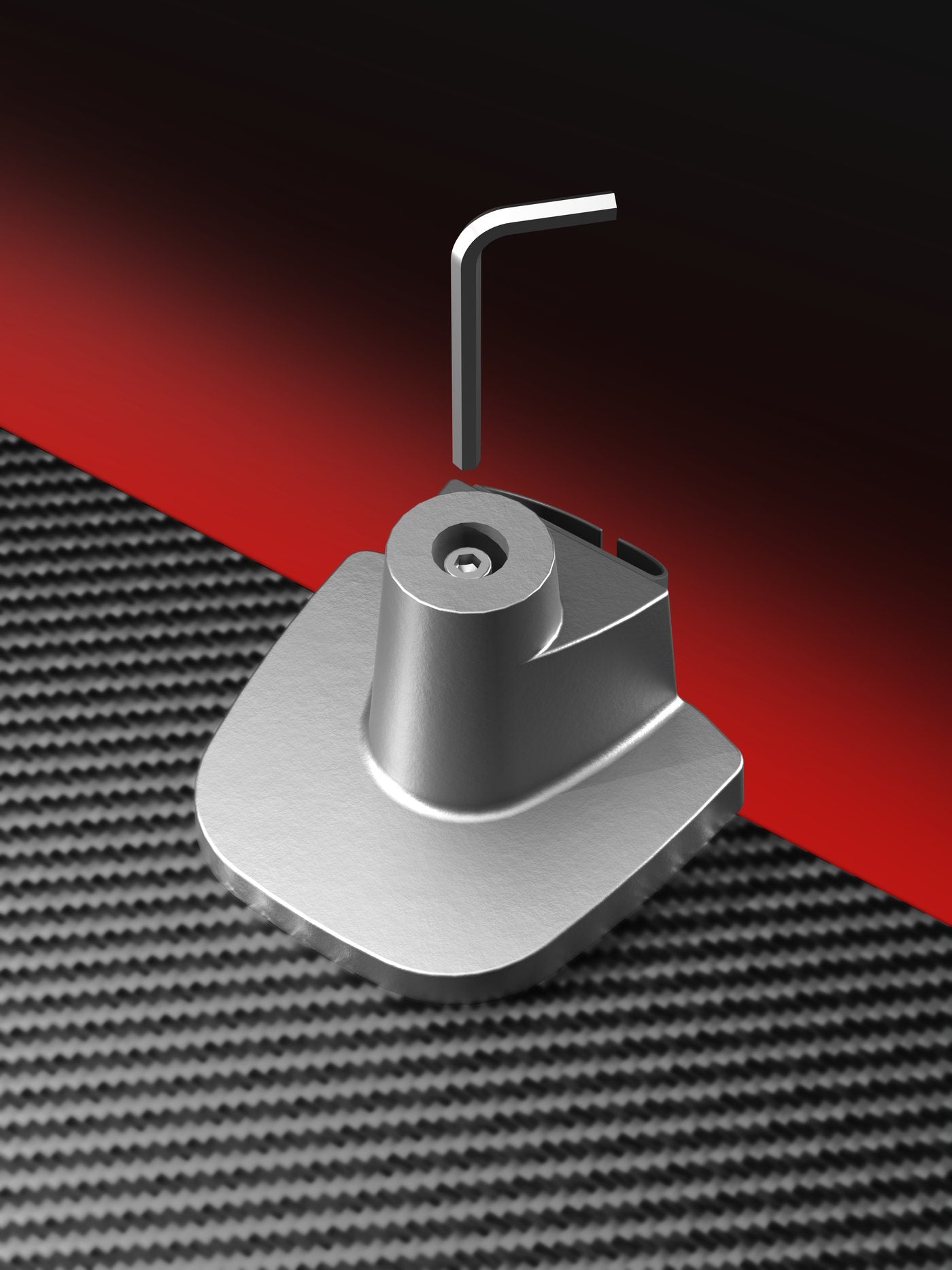

Tighten
Fix the base to the desk edge, or through an existing grommet hole.

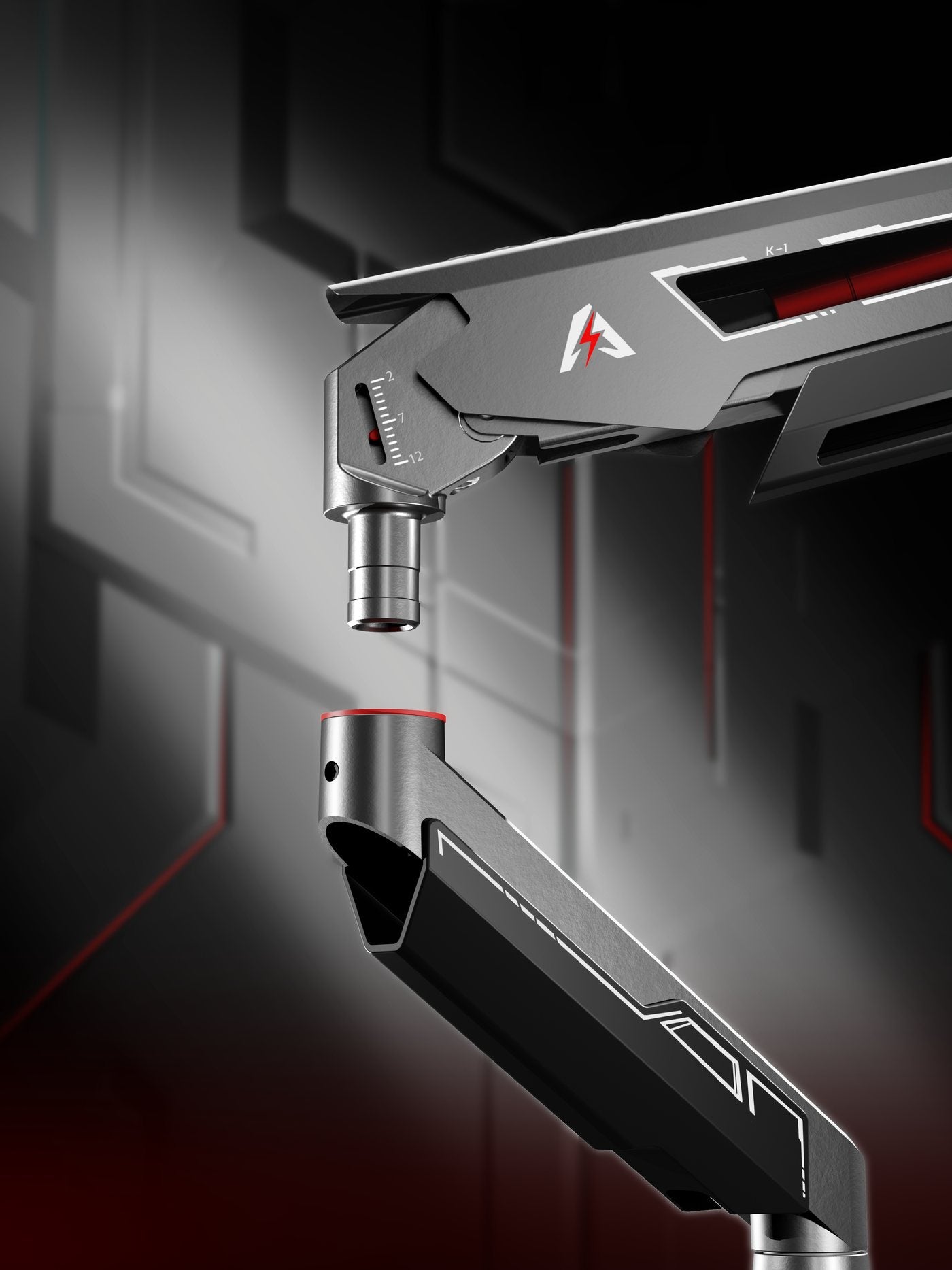

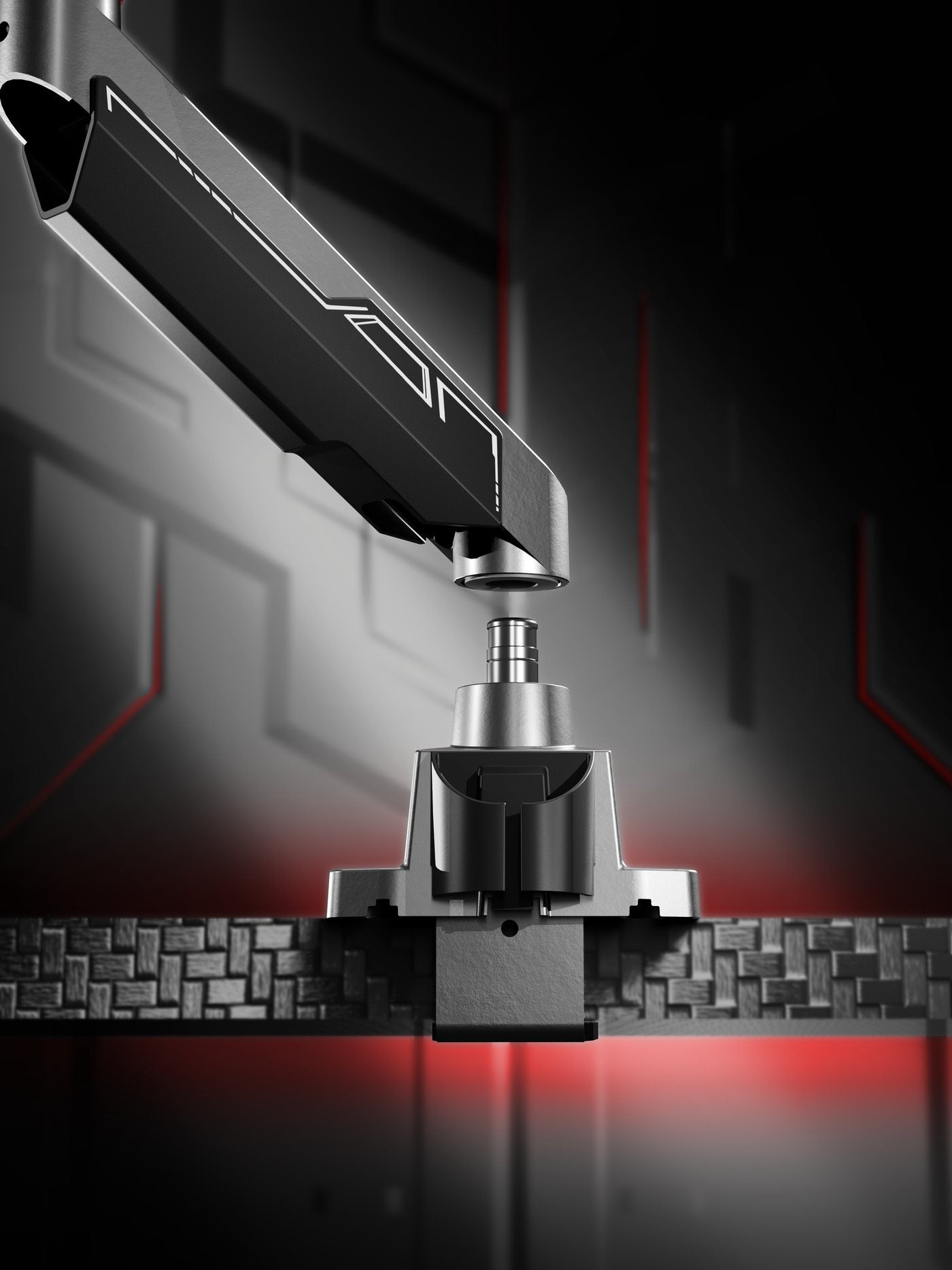

Click In
Drop the arm onto the base — the pin-lock post clicks straight in.

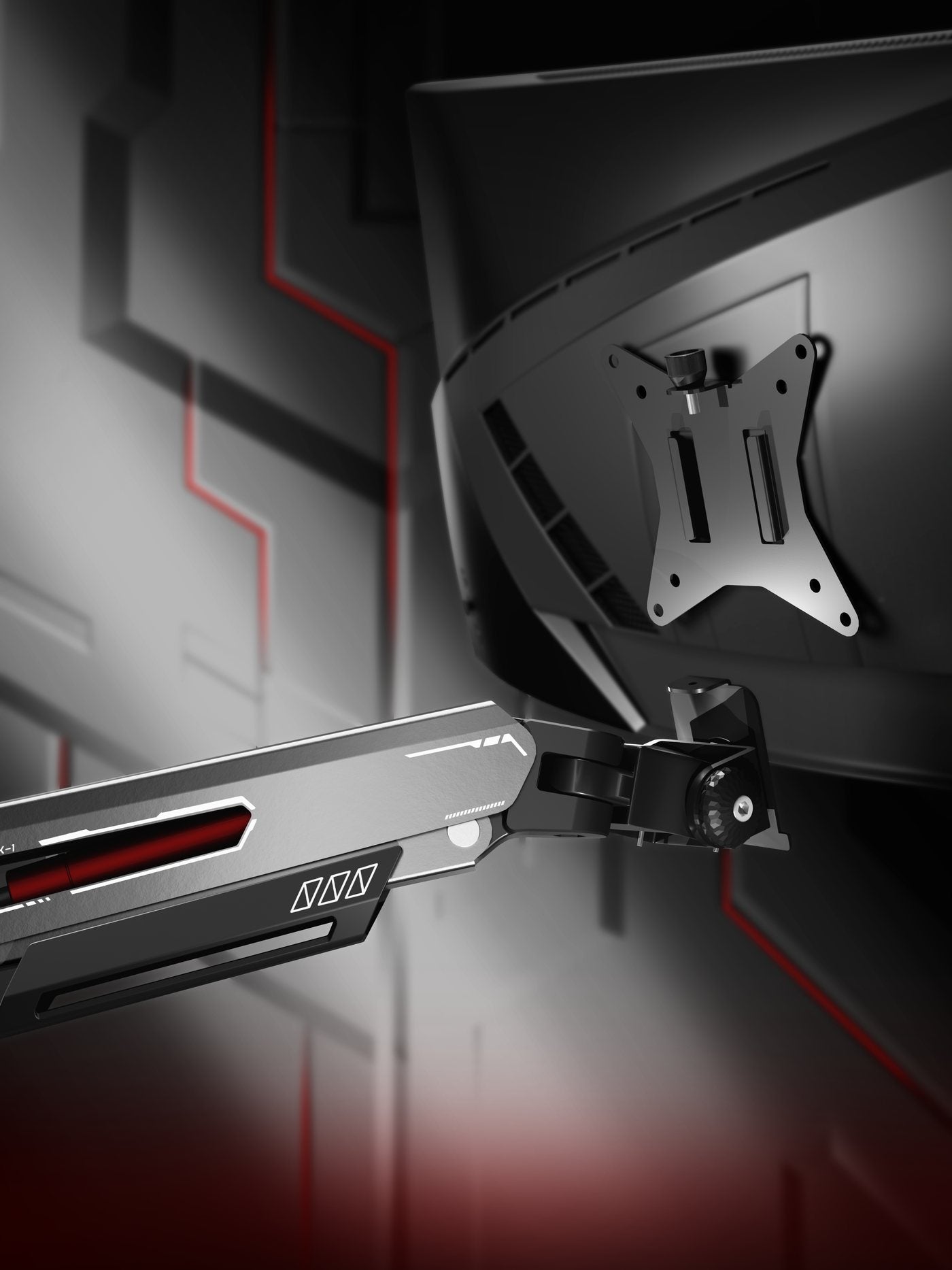

Mount
Hook the quick-release VESA plate onto your monitor and you’re done.

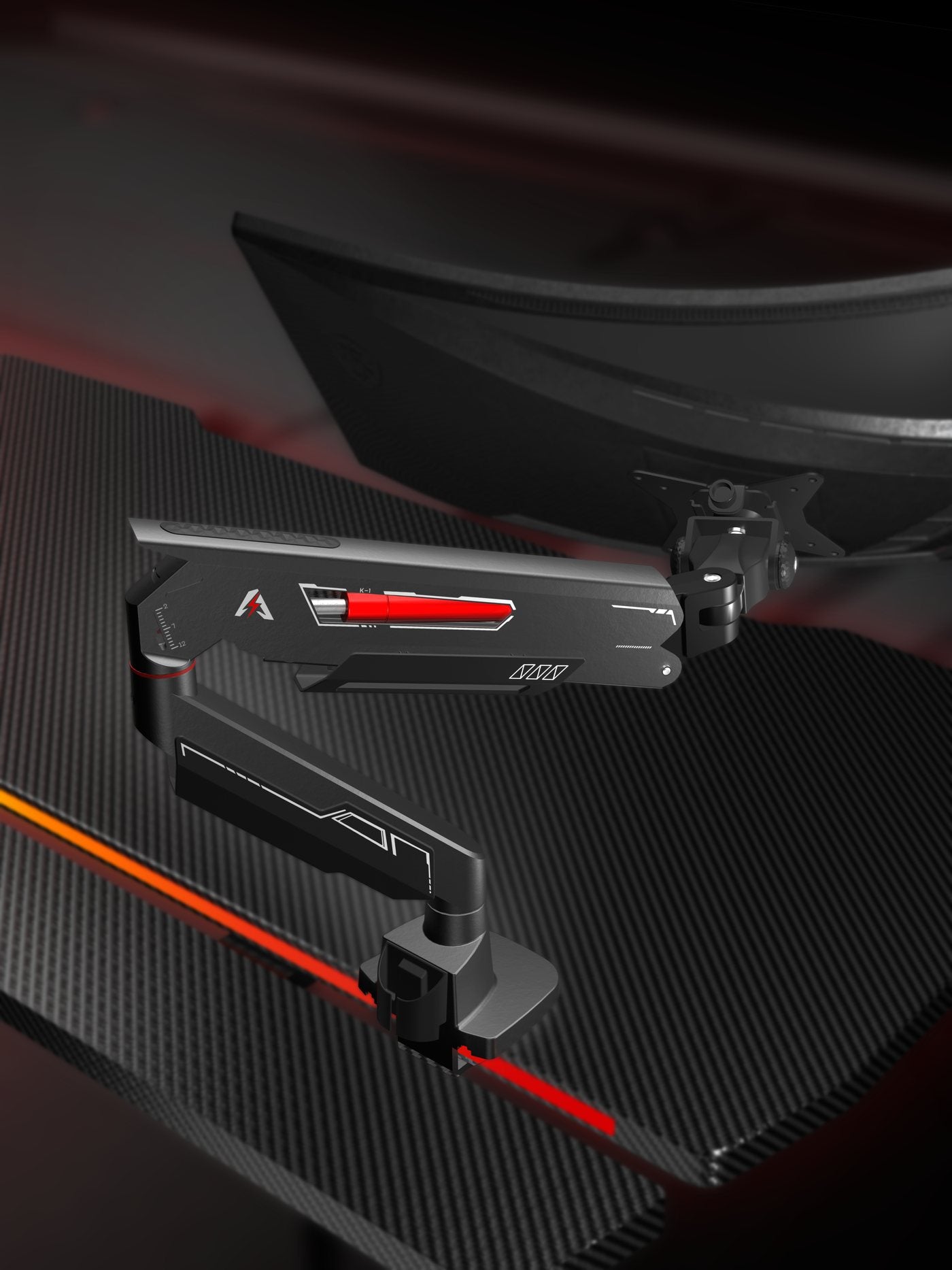

Five-Axis Full Motion
Game in landscape, code in portrait, stand up to stretch — every position is one easy movement away.
Product Details

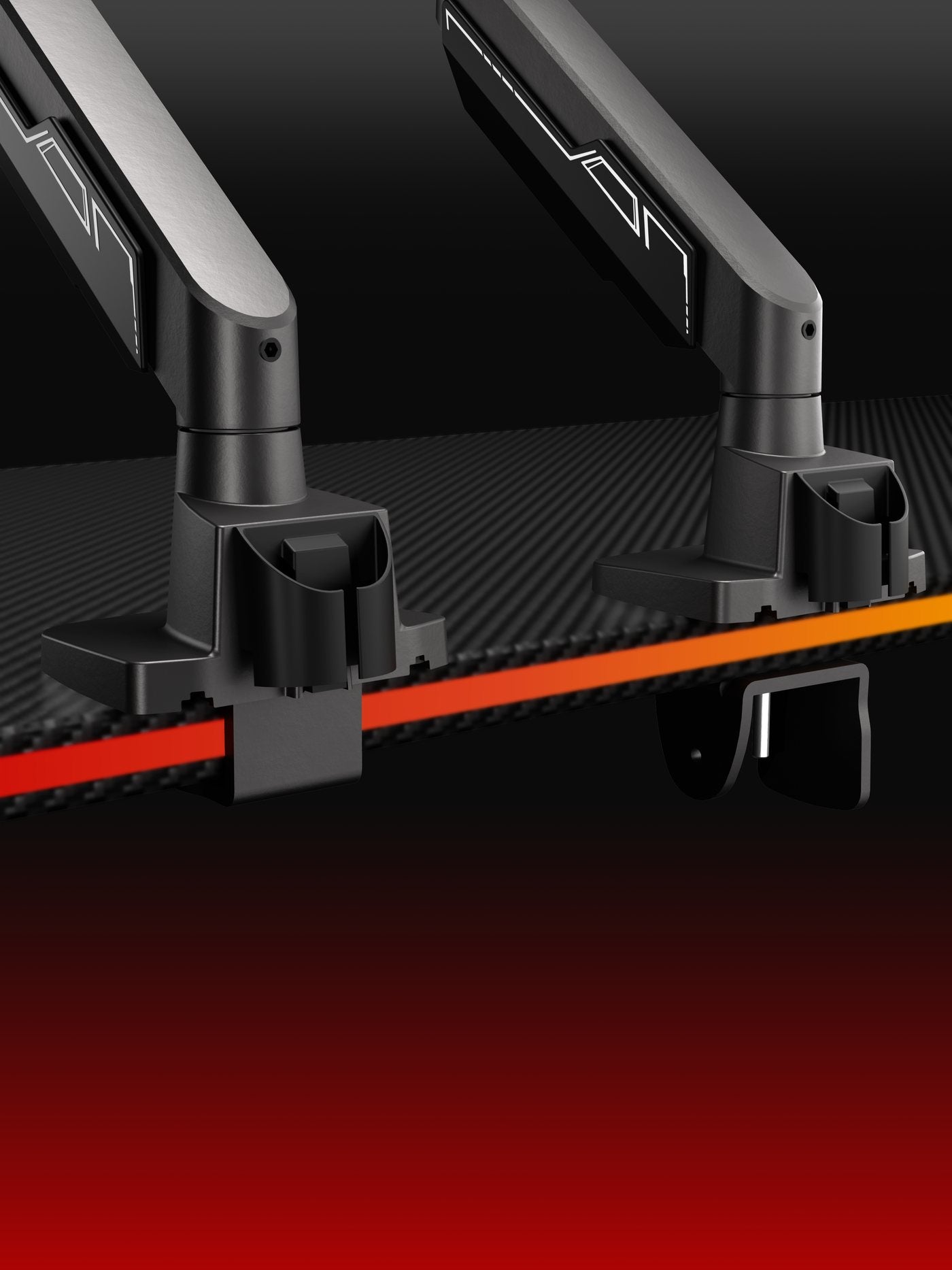

Dual mounting
Desk clamp or grommet

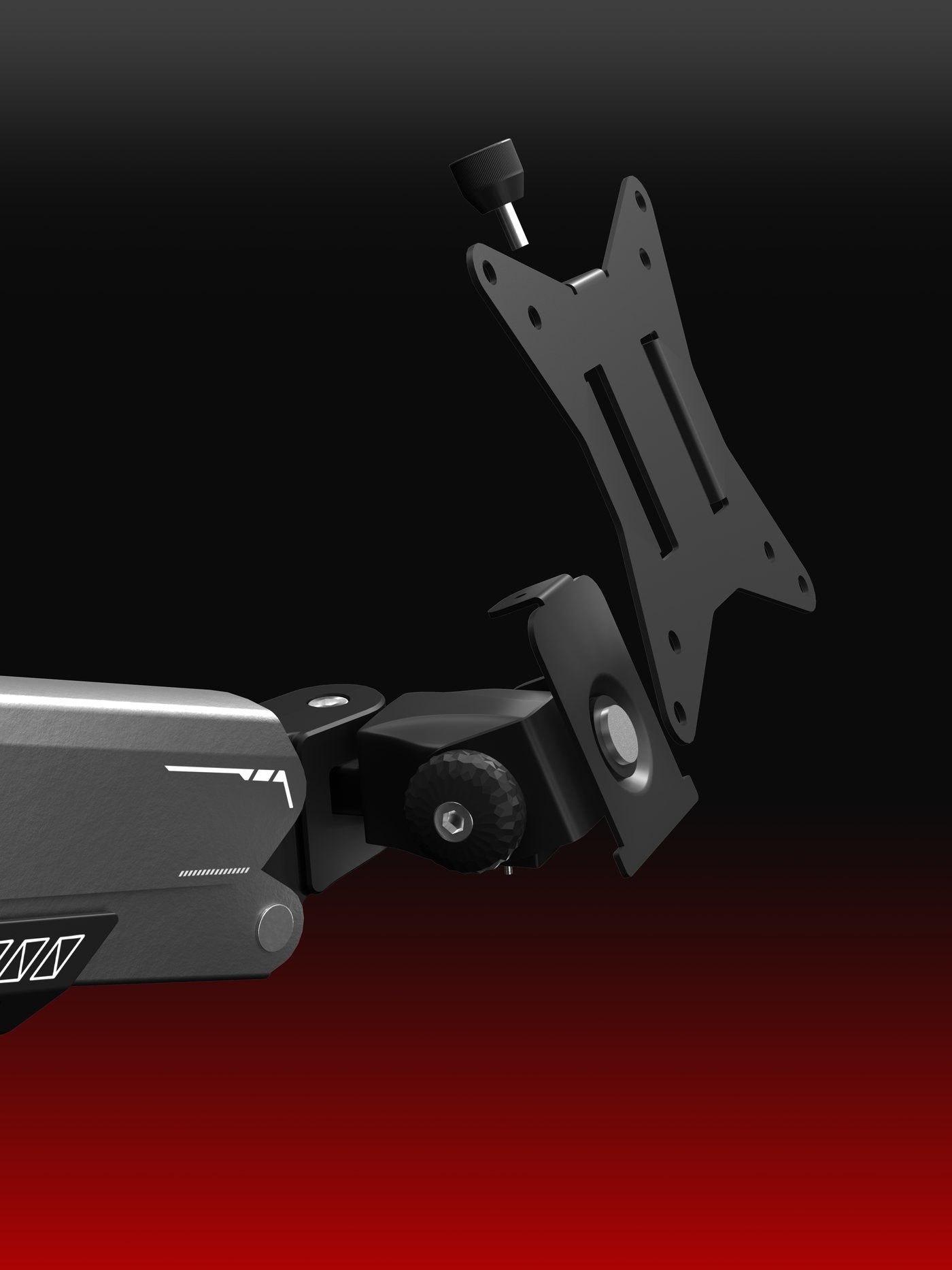

Quick-release VESA plate
Click on, click off

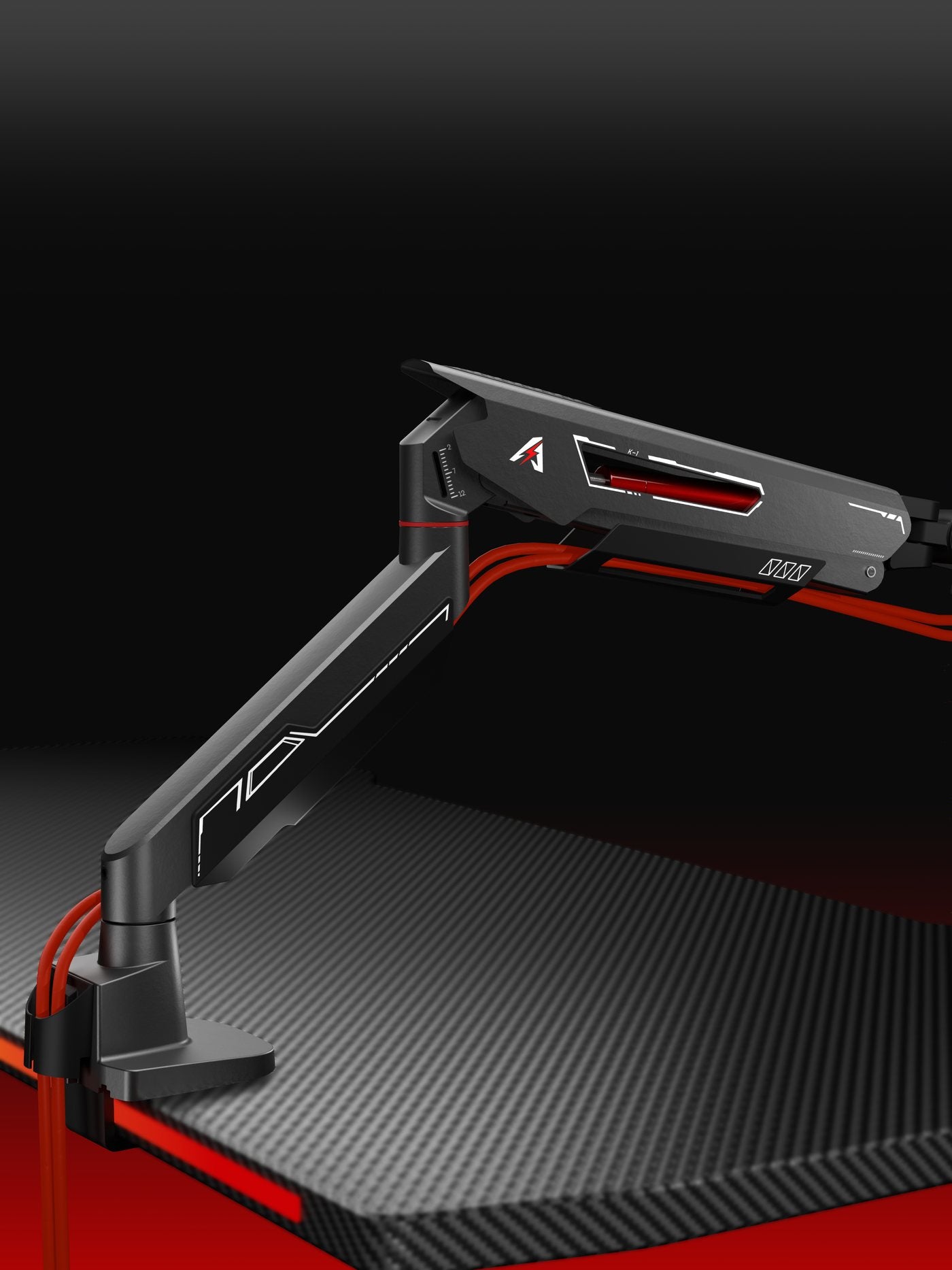

Hidden cable routing
Clean desk, tidy cables

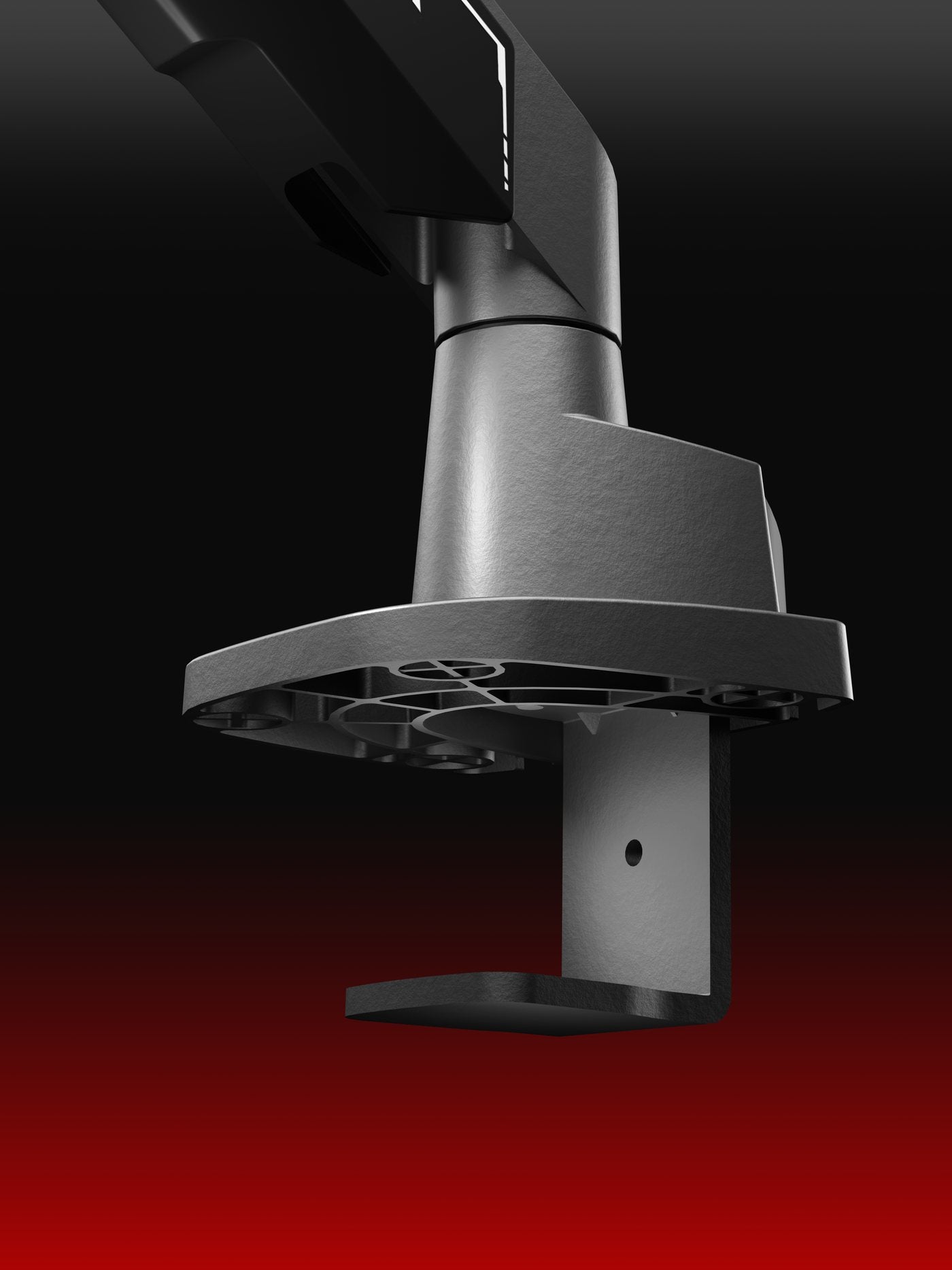

Aluminium alloy base
Premium feel, built to lastTech Specs
| Brand | AGKEY |
| Model | L1 |
| Screen compatibility | 13″–36″ |
| Weight capacity | 2–12 kg |
| VESA pattern | 75×75 / 100×100 mm |
| Screen tilt | +60° / −20° |
| Swivel | 180° |
| Screen rotation | 360° (landscape / portrait) |
| Arm extension | approx. 55 cm |
| Mounting | Desk clamp / grommet |
Installation Notes
Before you start
- Mount your monitor first, then adjust the arm tension. Keep a hand on the screen while you find the right setting.
- The arm ships pre-tensioned and springs upward — never disassemble the gas-spring assembly.
- Check the fixing screws periodically to keep everything snug.
- Included hardware: gaskets ×4, M4×12 screws ×5, M4×30 screws ×5, 5 mm spacers ×4, 13 mm spacers ×4.
